Ortal offers two power vent options to give you even greater design freedom: Inline-90 Power Vent System and Flush Horizontal Termination Power Vent System. Download the Power Vent Manual for more information on each power vent option.

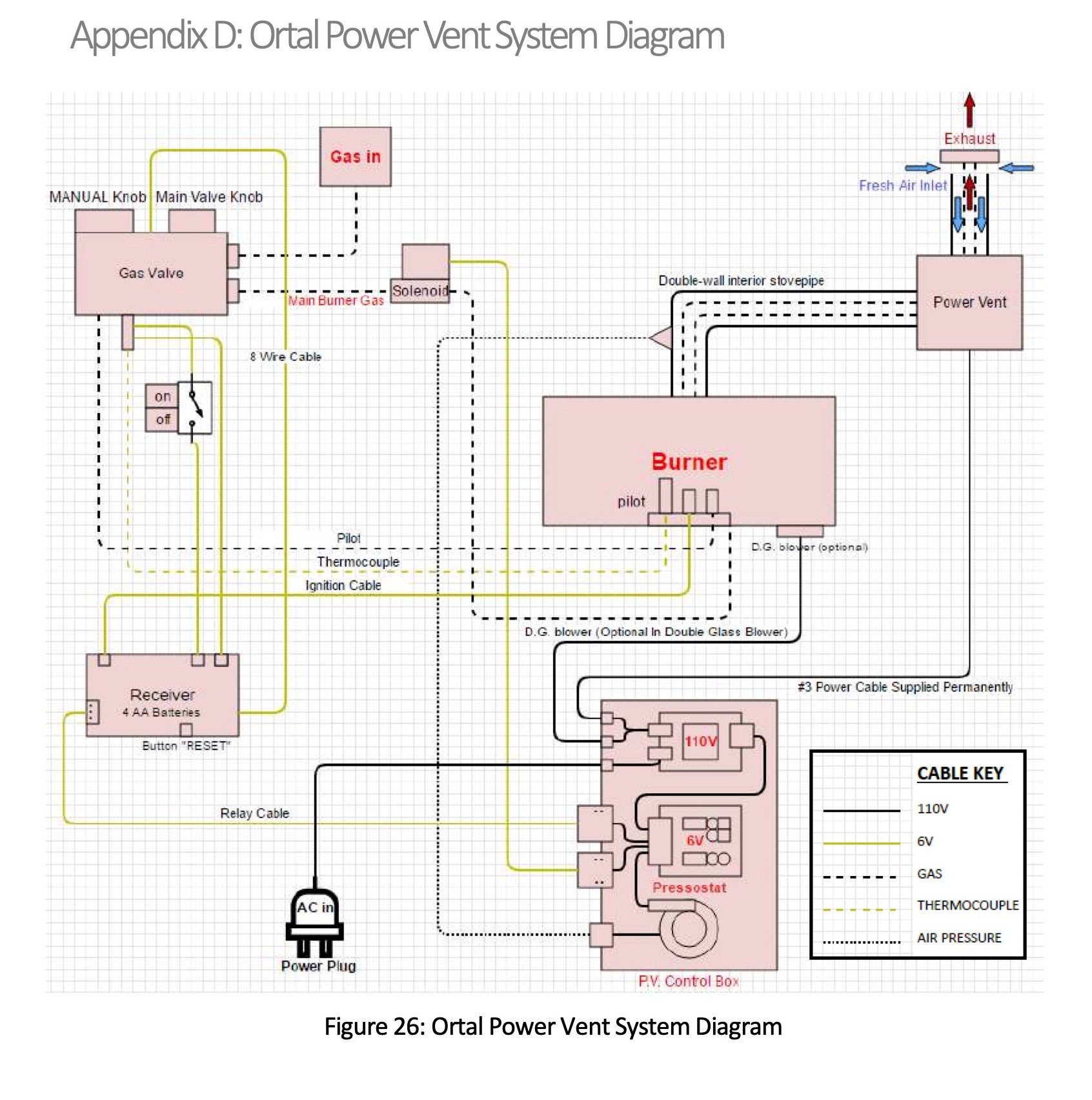

Download Power Vent Manual
Allows for both horizontal and vertical termination.
Accommodates vent runs up to 90 feet in length (varies per model).
Allows up to six 90-degree offsets (elbows).
Smaller pipe size (5-inch diameter).
Allows up to six feet of downhill run.
No additional power required.
Power vent fan is incorporated into the run as one of the 90-degree offsets.
Power vent fan must be installed at least 9 feet of vent pipe and up to 45 feet away from the fireplace.
An access panel for the power vent fan is required for servicing.

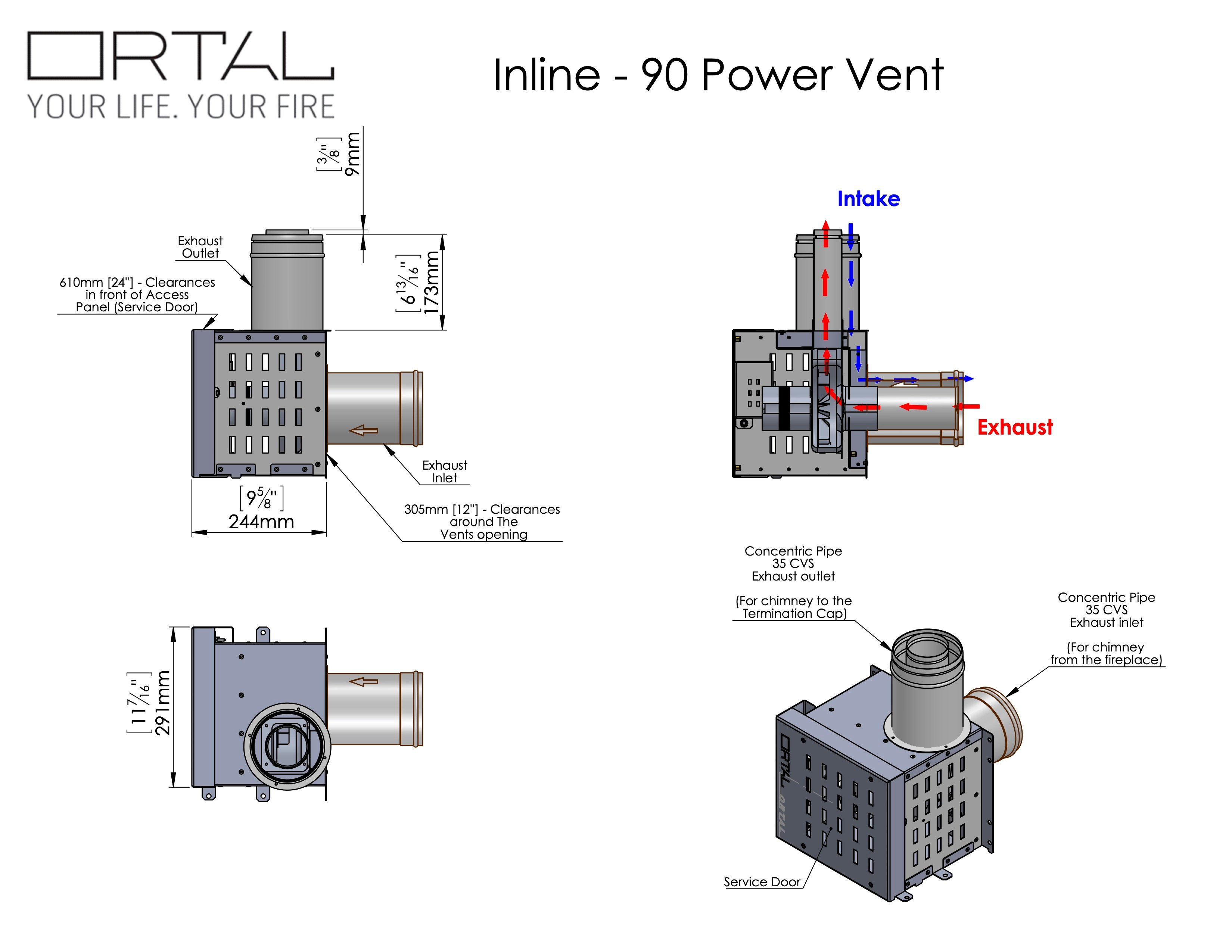

Click here for a PDF drawing, and here for a 2D CAD drawing of the 35CVS Inline-90 Power Vent System. Click here to view our Power Vent Manual.
Allows for horizontal termination only.
Accommodates vent runs up to 65 feet in length.
Allows up to six 90-degree offsets (elbows).
Smaller pipe size (5-inch diameter).
Allows up to six feet of downhill run.
No additional power required.
Power vent fan acts as the termination cap and sits flush to the outside wall.
Power vent fan must be installed a minimum of 9 feet of vent pipe away from the fireplace.
An access panel is not required for servicing.

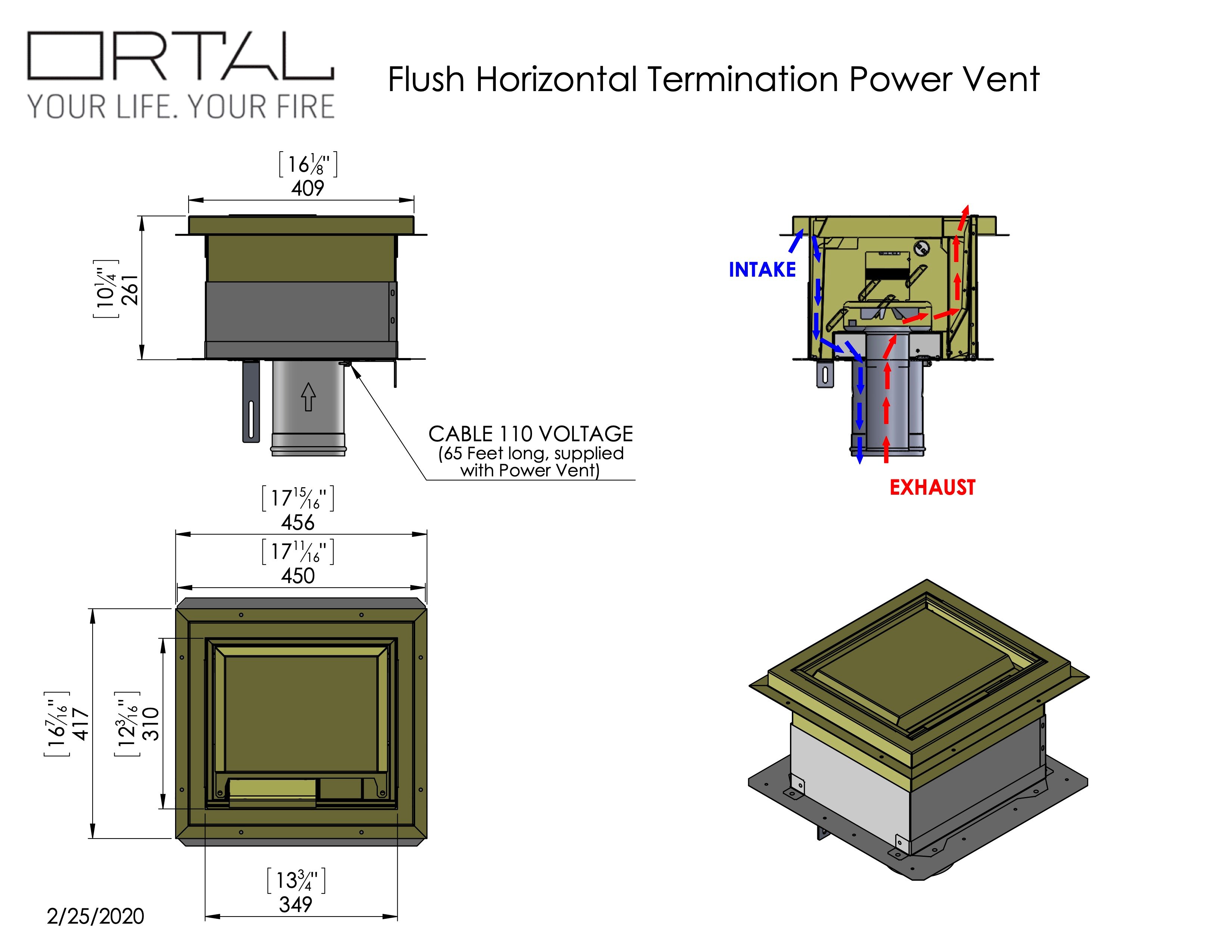

Click here for a PDF drawing and here for a 2D CAD drawing of the 35CVS Flush Horizontal Power Vent System. Click here to view our Power Vent Manual.
